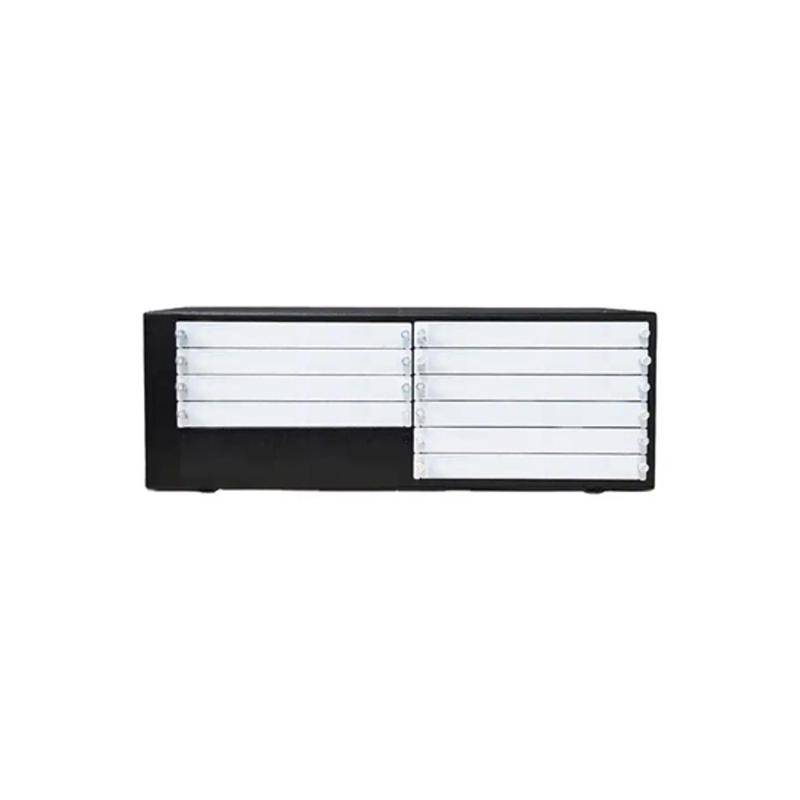

ONESIA Video Matrix Controller 3U (HDMI 12 In 16 Out)

Jenis Produk : TKDN AV Switch
Deskripsi : Feature Images Splicing, Matrix Switch, Input Channels support HDMI/DVI/SDI, Output Channels support DVI/HDMI, Image Segmentation, Map Mode (Ultra High Resolution Overlay Display of Static Image), Automatic Detection, Support H.264
Spesifikasi Teknis : 3U Chassis Video Processor, HDMI 12ports IN & 16ports OUT, Max Input 16ports (4Slots), Max Output 20ports (5Slots), Network Control, RS232 Communication

Lokasi Pembelian

ONESIA Video Matrix Controller 3U (HDMI 12 In 16 Out)

Video Matrix Controller 3U (HDMI 12 In 16 Out) adalah perangkat pengatur sinyal video dengan 12 input dan 16 output HDMI, mendukung DVI dan SDI. Fitur termasuk segmentasi gambar, overlay resolusi tinggi, dan kompresi H.264. Dilengkapi kontrol jaringan dan RS232, dengan konsumsi daya 120W dan suhu operasional -10 hingga 50°C, cocok untuk aplikasi penyiaran dan proyeksi besar.

Spesifikasi

SKU

VMX3-H0E14-0000

Brand

ONESIA

Jenis Produk

TKDN AV Switch

Deskripsi

Feature Images Splicing, Matrix Switch, Input Channels support HDMI/DVI/SDI, Output Channels support DVI/HDMI, Image Segmentation, Map Mode (Ultra High Resolution Overlay Display of Static Image), Automatic Detection, Support H.264

Spesifikasi Teknis

3U Chassis Video Processor, HDMI 12ports IN & 16ports OUT, Max Input 16ports (4Slots), Max Output 20ports (5Slots), Network Control, RS232 Communication

Keterangan Lainnya

Power Consumption 160W, Operating Temp -10 ~ 50°C, Relative Humidity 5 - 95% No Condensation

Chassis

3U

Input Ports

12 HDMI ports

Output Ports

16 HDMI ports

Maximum Input

16 ports (4 Slots)

Maximum Output

20 ports (5 Slots)

Supported Input Channels

HDMI/DVI/SDI Board Card

Supported Output Channels

DVI/HDMI Board Card

Features

Image Splicing, Matrix Switch, Image Segmentation, Map Mode (Ultra High Resolution Overlay Display), Automatic Detection, H.264 Support

Network Control

Yes

RS232 Communication

Yes

Power Consumption

160W

Operating Temperature

-10 ~ 50°C

Relative Humidity

5% - 95%, No Condensation
